Horizontal Hard-Bearing Balancing Machines

Hofmann’s horizontal hard-bearing balancing machines are used to precisely balance a large variety of roll- or disk-shaped rotors. Based on a modular design they can be adapted to a wide range of balancing applications.

Hofmann’s horizontal hard-bearing balancing machines are used to balance from very small to very large rotors. For balancing, the rotors are supported by their own bearing journals, mounted to a balancing arbor or balanced as a complete assembly. Rotor applications include electric armatures, spindles, rotors from fans, generators, turbines or compressors as well as rolls or crank shafts.

Hofmann’s horizontal hard-bearing balancing machines are characterized by their high availability. Their permanent calibration ensures simple machine operation. The special Hofmann force measuring principle provides high measuring accuracy.

With diverse available expansion options like reinforced bearing pedestals, a more powerful drive and specific software solutions, even simple flexible rotors can be balanced up to their operating speeds. Available integrated unbalance correction systems make the balancing process even more efficient. Customized safety concepts increase machine safety.

Horizontal, Hard-Bearing Balancing Machine

Type R-7.1 to 200 g

The Hofmann horizontal, hard-bearing balancing machine R-7.1 is used for high-precision balancing of very small rotors up to a max. weight of 200 g – like dental drill turbines or armatures from miniature electric motors.

Special features

  • Robust measuring table for adaption of
    • V-blocks
    • tooling to receive complete assemblies
  • Extremely high measuring sensitivity
  • Designed for desk-top installation
  • Equipped with belt or compressed air drive

Application

  • Balancing of very small rotors
    • with own journals
    • as complete assembly on a tooling
  • Balancing of rotors from
    • dental tools
    • miniature electric motors
    • miniature spindles
    • model or toy drives

Additional product information

Horizontal, Hard-Bearing Balancing Machine

Type H-9.1 to 5 kg

The Hofmann horizontal, hard-bearing balancing machine H-9.1 is used for high-precision balancing of small to very small rotors up to a max. weight of 5 kg.

Special features

  • Very high sensitivity and measuring accuracy
  • Pedestals designed for adaption of
    • roller bearings or V-blocks
    • tooling to receive complete assemblies
  • Various install options
  • Optional design for balancing of magnetized rotors

Application

  • Balancing of small to very small rotors
    • with own journals
    • on a balancing arbor
    • as complete assembly on a tooling
  • Balancing of rotors from
    • small electric motors
    • spindles
    • turbocharger
    • small turbines

Additional product information

Horizontal, Hard-Bearing Balancing Machine

Types  H-11.1 / H-12.1 from 25 to 50 kg

The Hofmann horizontal, hard-bearing balancing machines H-11.1 and H-12.1 resp. are used for high-precision balancing of various small rotors up to a max. weight of 20 kg and 50 kg resp..

Special features

  • Very high sensitivity and measuring accuracy
  • Pedestals designed for adaption of
    • roller bearings or V-blocks
    • tooling to receive complete assemblies
  • Compact design featuring integrated measuring station and unbalance measuring system
  • No special foundation required

Application

  • Balancing of small rotors
    • with own journals
    • on a balancing arbor
    • as complete assembly on a tooling
  • Balancing of rotors from
    • small electric motors
    • machine tool spindles
    • turbocharger
    • small turbines
    • textile machines

Additional product information

Horizontal, Hard-Bearing Balancing Machine

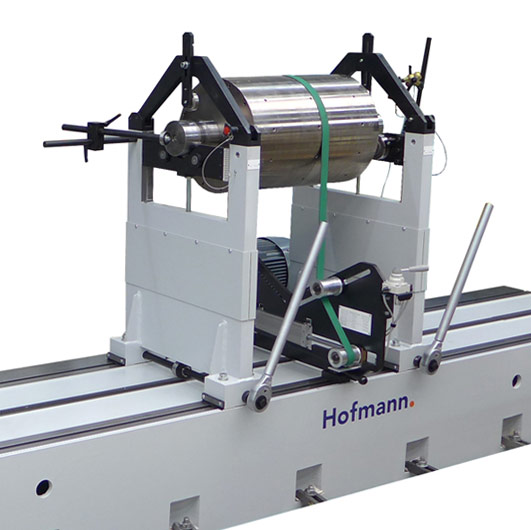

Types H-13 to H-34 from 100 to 100.000 kg

The Hofmann horizontal, hard-bearing balancing machines H-13 through H-34 are used for high-precision balancing of various small to very large rotors with a max. weight up to 100,000 kg.

Special features

  • Very high sensitivity and measuring accuracy
  • Pedestals designed for adaption of
    • roller bearings, V-blocks or journal bearings
    • tooling to receive complete assemblies
  • End- and/or belt-drive
  • Quick changeover for another rotor type
  • Design with a machine bed

Application

  • Balancing of small, medium-sized and big rotors
    • with own journals
    • on a balancing arbor
    • as complete assembly on a tooling
  • Balancing of rotors from
    • electric motors and generators
    • fans
    • turbines and compressors
    • large turbocharger
